Cat Dog Rabbit Feed Pellet Making Extrusion Processing Line Feed Pellet Extruder Machine Pet Food Fish Feed Making Machine
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | MIKIM |
| إصدار الشهادات: | CE |
| رقم الموديل: | DGP-40، DGP-60، DGP-70، DGP-85، DGP-90 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | $1500.00 - 35000.00/ Set |
| تفاصيل التغليف: | معبأة بواسطة حزمة تصدير خشبية أو التحميل بالحاويات |
| وقت التسليم: | 7-10 أيام عمل |
| شروط الدفع: | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام |
| القدرة على العرض: | 300 مجموعات شهريا |
|
معلومات تفصيلية |
|||
| قوالب: | يمكن اختيار أشكال مختلفة | المواد الغذائية: | اللحوم والفاصوليا والخضروات وهلم جرا |
|---|---|---|---|
| قطع غيار: | 1 مجموعة | عملية: | عملية تلقائية بسيطة |
| المحركات: | العلامات التجارية الصينية ، Siemens ، ABB | نوع المعالجة: | البثق |
| استغلال: | ايه بي بي | ||
| إبراز: | pet food extruder machine,fish feed pellet extruder,rabbit feed pellet making machine,fish feed pellet extruder,rabbit feed pellet making machine |
||
منتوج وصف

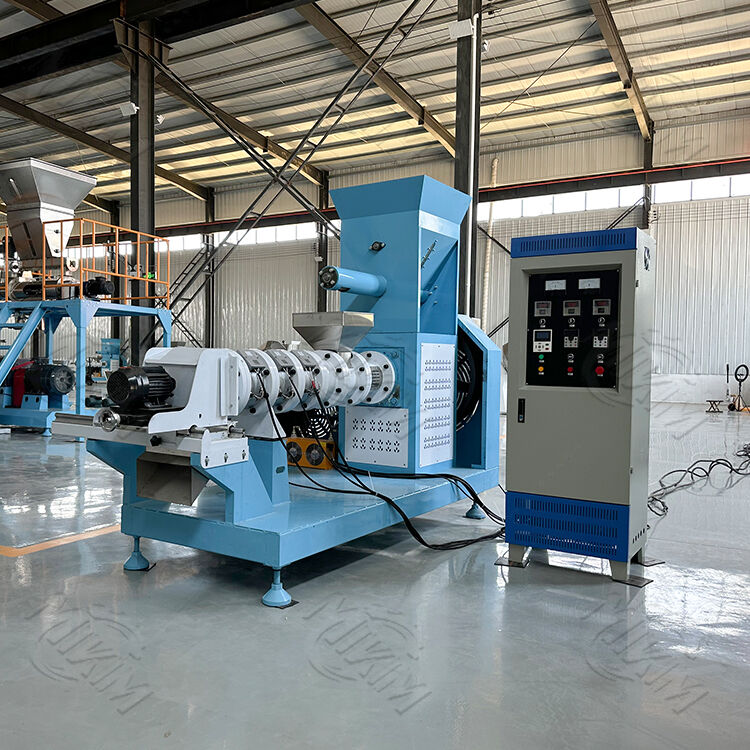

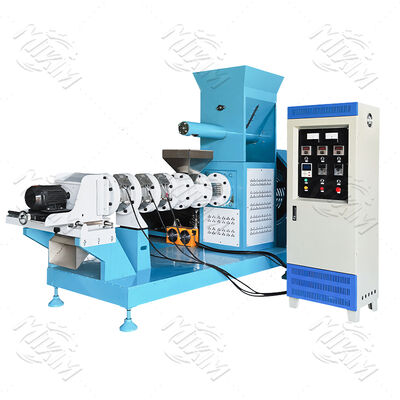

Cat Dog Rabbit Feed Pellet Making Extrusion Processing Line
Full Automatic Aquatic Floating Fish Feed Pellet Extruder Machine Fish Feed Making Machine Production Line
Product Features
- Pet food extruder is a specialized mechanical equipment used for producing pet food, which extrudes raw materials into shapes through high temperature and high pressure.
- High-quality full-automatic dog and fish feed extruder takes meat meal, fish meal, corn meal, soybean meal and other grain meal as the main raw materials, and changes the mold and formula to make dog, cat, fish, bird and other pet food with different shapes and tastes.
- The design fully considers production efficiency and stability, runs smoothly, can operate continuously for a long time, effectively reduces downtime, and greatly improves production progress.
- It adopts modular circular groove screws, and by changing the assembly order of the screws, products with different aspect ratios can be made, such as corn flakes, puffed snacks, proteins, etc.
Technical Specifications
- Raw Materials: Meat meal, Fish meal, Corn powder, Soya meal and other grain's powder
- Products: The pellet food, like dog, cat, fish, bird food etc.
- Capacity: 300-2000KG/H
- Machines Materials: All the machines are made by food grade stainless steel.
Final Pellet Specifications
Round Shape and other shapes, Diameter: 0.9-15mm by replace the moulds
Technical Parameters
| Parameter | DGP-100 | DGP-120 | DGP-135 | DGP-160 | DGP-200 |
|---|---|---|---|---|---|
| Capacity (kg/h) | 500 | 600-700 | 800-900 | 1000-1200 | 1800-2000 |
| Main motor (kw) | 37 | 55 | 75 | 90 | 132 |
| Feeder motor (kw) | 1.5 | 1.5 | 1.5 | 2.2 | 3 |
| Cutter motor (kw) | 1.5 | 1.5 | 2.2 | 2.2 | 3 |
| Screw diameter (mm) | φ100 | φ120 | φ135 | φ160 | φ200 |
| Machine size (m) | 2 × 2.8 × 1.2 | 2.2 × 2.9 × 1.2 | 2.2 × 3.1 × 1.37 | 2.3 × 3.15 × 1.38 | 2.35 × 3.45 × 1.65 |
| Weight (kg) | 1500 | 1800 | 2000 | 2500 | 3200 |
Packaging and Shipping
MIKIM attaches great importance to the safety of the machine during transportation. Before delivery, the machine will be wrapped with plastic film to prevent water, moisture and rust, and it will be fixed by a metal frame. When all the machines are loaded into the container, the overall reinforcement will be carried out. MIKIM will pay attention and help you throughout the entire shipping process.
Our Services
- We will give detailed introduction of the Wet type advanced design Fish food extruder making machine according to the client capacity requirement.
- Share any information about the Fish food extruder making machine that the clients need, like detailed pictures, video, etc.
- Design floating fish food extruding line for client.
- Help the clients to do suitable floating fish feed formulation.
- Give detailed instruction manual and video to help the client operate the Fish food extruder making machine.
